Instruction Guide For Adjustable Sliding Panels
Installation Guide for Adjustable Sliding Panels
How to install?
Download our step by step instructions or watch our fitting videos to fit it quickly and easily.
How do I modify the size of the adjustable sliding panels? What if my sliding door is greater than 86”?
Width: Install two or more sets of adjustable sliding panels when required width is greater than 86”. Simply modify the width of the track to anywhere you need between 45.8” ~ 86”.
Length: 96” trimmable panel can be cut to any required length. Simple and regular pattern is suggested if you are planning to trim a large piece down from the panel.
Read more about Installing 2 Sets of Sliding Panel Track Blinds.
SIZE CHART
| Required Width of Your Project (in.) | Number of Set Needed to be Installed |
|---|---|
| 259” ~ 344” | 4 |
| 45.8” ~ 86” | 1 |
| 91.6” ~ 172” | 2 |
| 173” ~ 258” | 3 |

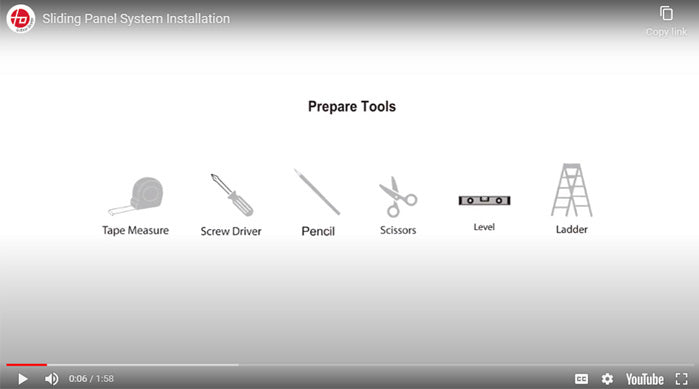

Sliding Panel System Installation
Shows wall mount and ceiling mount installation step by step.

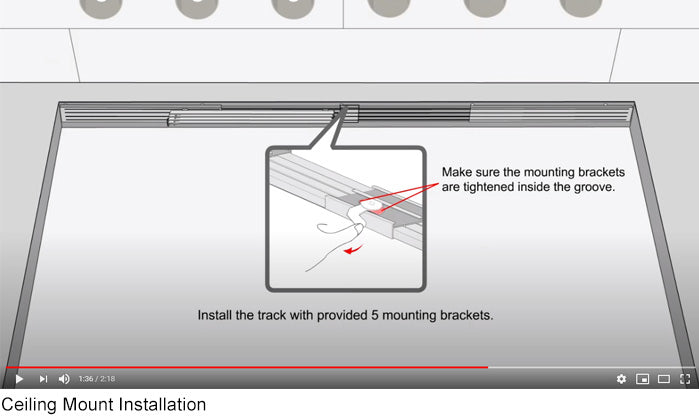

Ceiling Mount Installation
Get a more detailed look of ceiling mount installation.

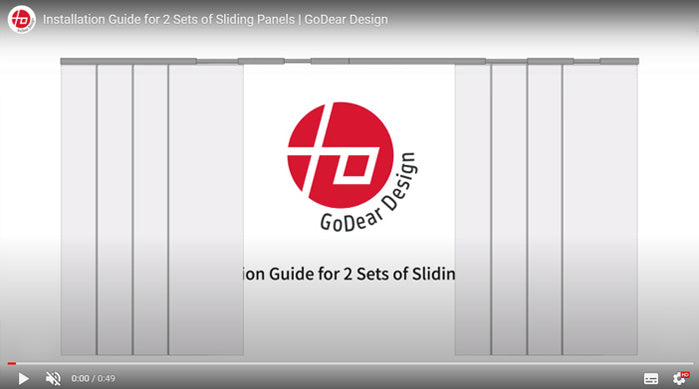

Installation Guide for 2 Sets of Sliding Panels
See how two sets of sliding panels work side by side.
Inside
Mount
window treatments are installed inside the window casing.
 |
 |
 |
 |
| Inside Mount Panel | Depth | Width | Height |
1. Measure Depth：Minimum 2.5-inch depth needed.
2. Measure Width：Measure the exact width of the window in three different places. Record the narrowest measurement.
3. Measure Height：Measure the exact height in three different places from the top edge of the opening to the top of the sill. Record the narrowest measurement.
Outside
Mount
window treatments are installed outside the window casing.
 |
 |
 |
 |
| Outside Mount Panel | Width | Headrail Location | Height |
1. Measure Width：Measure the exact width of the window, including the frame/ molding if there is one. Add 2” for each side (4” total overlap) to ensure light control and privacy.
2. Determine Track Location：Determine the track mounting position and mark the spot.
3. Measure Height：Measure the exact height of the window, from the top edge of the molding to the bottom edge, or to the top of the sill if there is one. Add at least 2-1/4” to allow adequate mounting area above the window.
